Product Overview
For those navigating common scenarios, the Pacific Arc Electrical Controls Template Guide, Standard Symbols Used in Machinery and Automation Circuits offers a compact option backed by satisfying experience. Crafted from Plastic, measuring 9.5"L x 4"W, weighing 0.01 Kilograms. Notable features include comprehensive template and template taking, contributing to its versatile character.
Key Features

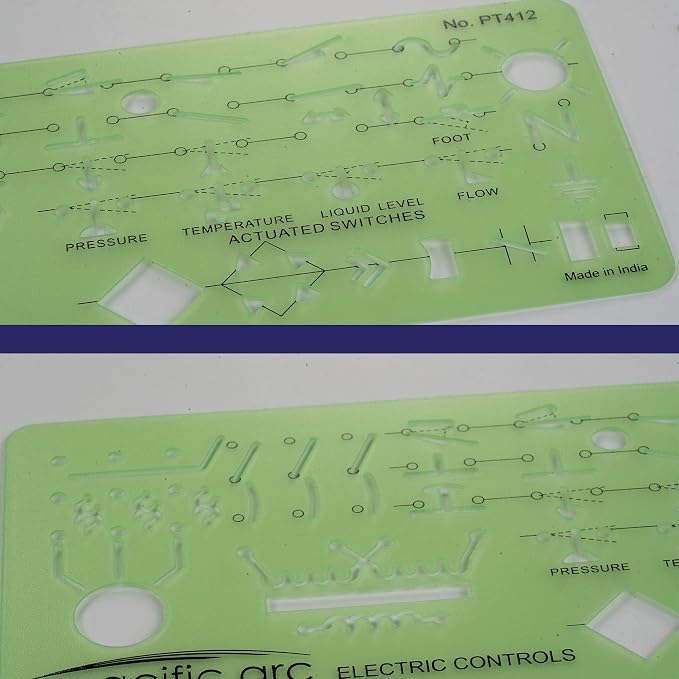

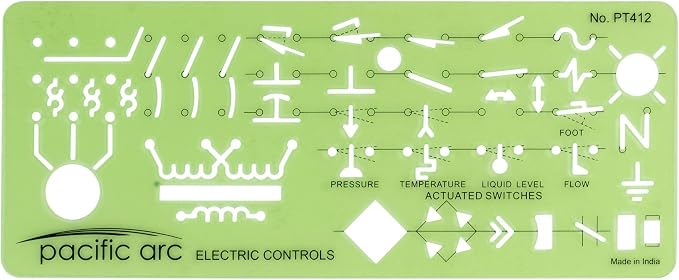

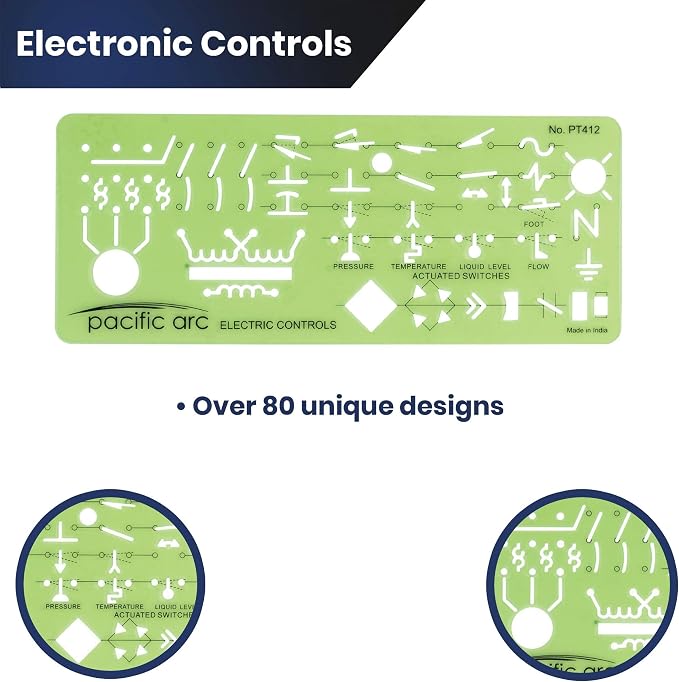

- COMPREHENSIVE TEMPLATE - Taking symbols from ANSI Y32.2, this template features all the major electrical symbols for contacts, switches, contactors, and relays. Easily design any diagram or detailed plan without any problems.
- COMPACT DESIGN - Measuring 8 Inches by 3.25 Inches, This compact design is perfect for drawing designs on the go. Able to fit in any work bag, never be without this template. Made in correct relative size for photographic reproduction.

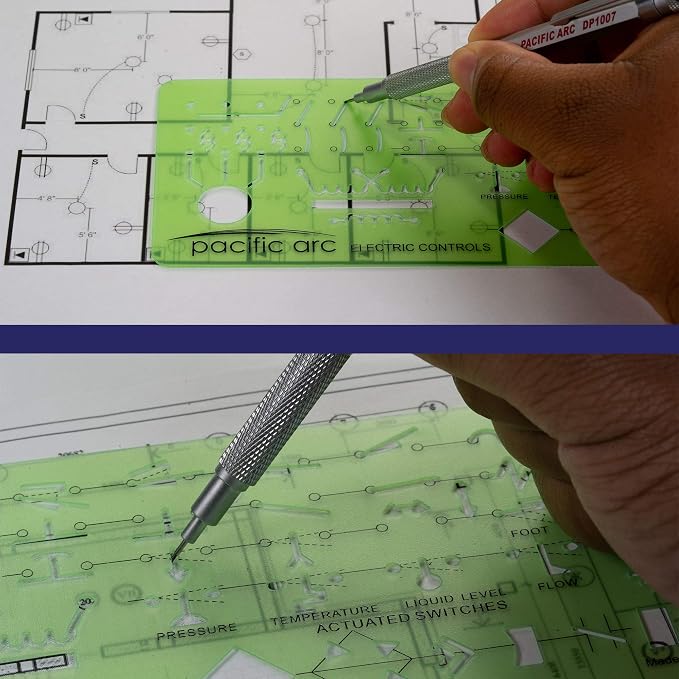

- MADE OF HIGH QUALITY PLASTIC - The translucent see through green plastic makes it easy to create your exact shape without drawing in the wrong place. It's convenient size makes it the perfect travel template for any professional or student. works on many surfaces including paper, vellum, fabric, canvas, wood, and mylar.
- THE PERFECT GIFT - Gift this shape stencil to the artist in your life. Give them a practical, memorable gift that will further their creativity to the next level.
Why Choose the Pacific Arc Electrical Controls Template Guide
Among comparable templates products, the Pacific Arc Electrical Controls Template Guide, Standard Symbols Used in Machinery and Automation Circuits differentiates through value-driven build and comprehensive template, both pointing toward practical use.
Best For
The Pacific Arc Electrical Controls Template Guide is best suited for: drawing designs on the go.
Quick Summary
The Pacific Arc Electrical Controls Template Guide is a Templates product by PacificArc. Material: Plastic. Brand: Pacific Arc. Style: Electronic Controls. Product Dimensions: 9.5"L x 4"W. Item Weight: 0.01 Kilograms. Price: $15.33.
Product Specifications
| Specification | Details |
|---|---|
| Material | Plastic |
| Brand | Pacific Arc |
| Style | Electronic Controls |
| Product Dimensions | 9.5"L x 4"W |
| Item Weight | 0.01 Kilograms |
| Set Name | Pacific Arc Electrical Template Guides |
| Size | Electronic Controls |
